How to Deploy Docker Containers on VPS with Portainer

Teams gain faster visibility and control by pairing Docker with a lightweight management layer. Clear volume strategies, stack workflows, and guardrails reduce drift while keeping deployments predictable on modest VPS resources.

Running containers on a low-cost VPS puts you in full control of your infrastructure without the price tag of managed platforms. Add Portainer on top, and you get a friendly GUI to create, monitor and rebuild containers while still keeping all the power of Docker Compose and Git-backed stacks.

By the end of this guide, you will have Docker installed, Portainer running and a repeatable workflow for persistent volumes and stack deployment.

Quick Architecture Overview: What You’ll Build

You will set up one Linux VPS running the Docker Engine. Inside Docker, you run a Portainer Server container (plus an optional Agent if you later add more nodes).

Every application runs as its own container or Compose stack with named volumes for stateful data. The Portainer dashboard exposes an HTTPS web interface for container, volume and stack management, giving you a single, reproducible workflow.

Prerequisites and Choosing the Right VPS

A recent Debian/Ubuntu or RHEL-family image works best because both are covered by official Docker repositories. Aim for:

• 2 vCPUs / 2 GB RAM minimum for light workloads; add more RAM for databases.
• SSD or, ideally, NVMe storage for high I/O.
• Open TCP 22 (SSH) and 9443 (Portainer HTTPS). Use provider firewalls or UFW/Firewalld rules to limit access.
• Snapshot or automated backup options so you can roll back both the VPS and your volumes if something goes wrong.

Pro Tip: Choose a VPS plan that includes NVMe disks and scheduled snapshots so you can experiment safely before going live.

Install Docker on Your VPS: Step-by-Step Checklist for Repeatability

1. Update packages and install prerequisites:

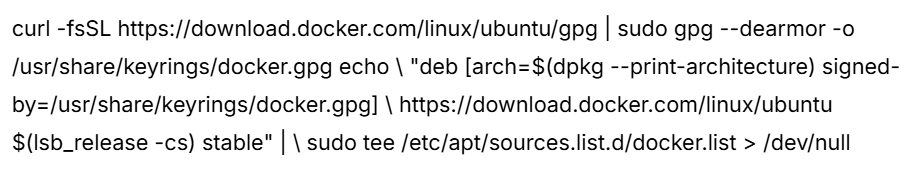

2. Add Docker’s GPG key and repository:

3. Install Docker Engine and CLI:

4. (Optional) Add your user to the Docker group:

5. Verify the daemon:

Docker uses the overlay2 storage driver on modern kernels, giving the best performance and feature set.

Also Read: Zabbix Cloud Monitoring: Track VPS Performance Expertly

Deploy Portainer (Server + Agent) on the VPS

Portainer works in two modes:

• Server-only for a single host (perfect for one VPS).
• Server + Agent, when you want to add more nodes later.

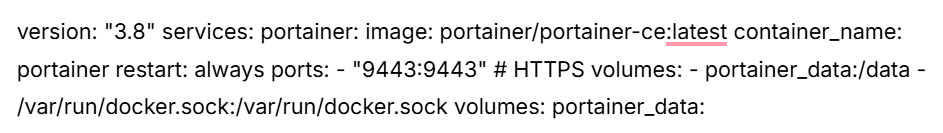

A Docker Compose file keeps deployment repeatable:

Deploy it:

Open https://<VPS-IP>:9443 in your browser, create an admin account and connect the local Docker environment. Portainer stores its configuration inside the portainer_data named volume, keeping users and settings safe between upgrades.

Composer-Based Deployment and Templates

Store the Compose file in Git so you can rebuild the exact same Portainer instance on a new VPS. Inside the Portainer dashboard, you can also enable built-in templates or link a Git repository for even faster, reproducible stack deployment.

Security best practices:

• Use a strong admin password and enable RBAC under Settings.
• If you leave Portainer on the public internet, put it behind a reverse proxy with TLS and basic auth, or restrict access by IP.
• Keep the Portainer image updated with docker pull portainer/portainer-ce: latest && docker compose up -d.

Test drive the GUI. Create an Nginx container, attach a volume, tail logs and then remove the container to confirm everything behaves as expected.

Persistent Storage: Volume Mounts, Named Volumes and Best Practices

Containers throw away their writable layer when they die, so stateful data lives in volumes or bind mounts.

• Named volumes are managed by Docker, portable and safe for databases or uploads.
• Bind mounts map a host directory into a container. Handy for dev workflows but riskier in production due to permissions.

Creating a volume in Portainer:

1. Open Volumes → Add Volume.
2. Name it (e.g. db_data) and click Create.
3. Refer to that name in your Compose stack:

Performance Tip: Place high-I/O volumes on NVMe disks when offered by your provider to reduce latency for databases.

Pro Tip: Need to back up a large volume without downtime? Attach it to a temporary helper container and stream a compressed tar to remote storage instead of copying host directories. It’s faster and avoids permission headaches.

Deploying Stacks and Templates via the Portainer Dashboard

Portainer supports four stack deployment options: paste-in Compose, upload a file, reference a Git repo or use a template.

Best practices:

1. Git-backed stacks for production – every change is traceable and easy to roll back.
2. Templates for teams – expose vetted stacks (e.g. WordPress + MariaDB) with safe defaults so junior devs can deploy without root access.
3. Keep secrets and environment-specific values out of Compose files; inject them with environment variables or Docker secrets.

Quick deployment walk-through:

• From Stacks → Add Stack, choose Git Repository, enter the repo URL and branch, click Deploy the Stack.
• Attach any existing named volumes through the UI.
• Check service health with the log viewer and container status indicators.

Want automation? A Git push followed by a webhook or Portainer’s auto-update feature gives you lightweight CI/CD.

Security and Resource Controls: Keep Your VPS Stable

• Resource limits: Define deploy.resources.limits for CPU and RAM in Compose to stop a runaway container from eating the entire VPS.
• Image hygiene: Scan images for CVEs and prefer minimal base images to reduce the attack surface.
• Network hardening: Keep management ports closed to the public; expose only required service ports and use provider firewalls plus UFW/Firewalld.
• Portainer security: Turn on RBAC, segment fleets with the Agent and never share root credentials.
• Backups: Combine provider snapshots with in-container backups so you can meet recovery objectives even if the VPS is lost.
• Monitoring: Enable basic host metrics or Prometheus exporters so you catch high resource usage before customers do.

Troubleshooting Common Issues on VPS-Hosted Docker + Portainer

• Volume mount failures: Check file permissions and, on RHEL, adjust SELinux contexts (chcon -Rt svirt_sandbox_file_t /your/volume).
• Port conflicts: Verify the host port mapping in Compose; consider a reverse proxy when hosting multiple web services.
• Container fails to start: View logs in the Portainer dashboard, confirm environment variables and ensure the image tag exists locally.
• High resource usage: Inspect container stats, apply limits, or resize the VPS if sustained CPU/RAM pressure persists.

If problems persist, replicate the issue locally, inspect Docker logs, and check Portainer logs before making changes to production data.

Docker Power, Minus the Guesswork

Combining Docker and Portainer on a VPS gives you full control at predictable cost, plus an intuitive GUI for day-to-day ops. Choose a right-sized VPS, install Docker, launch Portainer Server, create named volumes for persistent data, and use the Portainer dashboard for stack deployment while enforcing resource and security guardrails.

Test the entire flow on a disposable VPS, commit your Compose files to Git, and you will have a repeatable, production-ready pipeline in hours. If you want to speed up testing and benefit from snapshot backups and NVMe options, consider trying a Vodien VPS plan to host your first Portainer trial.
